Metal Tooling Accessories

INJECTION VALVE

Part No: XE-0015-01

A robust injection valve for CIJECT equipment, providing vacuum-tight connection to closed moulds. Enables easy cavity isolation, supports automation with minimal operator input, quick cleaning and reliable use with all resin types.

VACUUM CATCH POT

Part No: XE-0211

2 litre stainless steel vacuum catch-pot with clear acrylic lid, EPDM vacuum seal, and 3/8″ BSP port for optional vacuum connectors.

INLINE RESIN TRAP

Part No: XE-0213

2 litre stainless steel inline resin trap with clear acrylic lid, EPDM vacuum seal, and 3/8″ BSP port for optional vacuum connectors.

AIR EJECTOR

Part No: XE-0020

Designed to efficiently remove cured mouldings without the mould damage associated with wedges or mechanical force. Used for connection between CIJECT equipment and an inlet port of a typical closed mould.

IMPS SENSOR 0 to 10 BAR (ABS)

Part No: XE-0050-011

0 to 10 bar (ABS) in-mould pressure sensor suitable for RTM process, providing in-mould feedback control to CIJECT injection/infusion machines.

IMPS LEAD ASSEMBLY (M12 CONNECTOR)

Part No: XE-0060-08 / XE-0060 / XE-0060-01

Sensor cable used to connect a sensor with a M12 connector to a CIJECT machine IMPS input or an IMPS Readout Unit. Connectors include 3–pin IMPS plug to 4–pin M12 socket.

MOULD VENT LINER INSERT

Part No: XA-0003

Liner used in conjunction with a 3/8” BSP insert to reduce the vacuum vent diameter, for connecting 6 mm pipe.

BLANKING PLUG 20mm

Part No: XA-0005

3/8” BSP delrin blanking plug designed to be used with a mould insert to close off a vacuum catch-pot or injection port, when not in use.

INJECTION VALVE BLANKING PLUG

Part No: XA-1518

3/8” BSP delrin blanking plug designed to be used with a composite mould insert to close off a vacuum catch-pot or injection port, when not in use.

AIR EJECTOR BLANKING PLUG INSERT

Part No: XA-2007

20mm machined delrin insert with no through hole. Used with either a composite or metal mould insert, to close off an air ejector when not in use.

IMPS BLANKING PLUG

Part No: XA-0033

3/4” BSP machined delrin insert with no through hole. Designed to be used with a mould insert to close off an IMPS port when not in use.

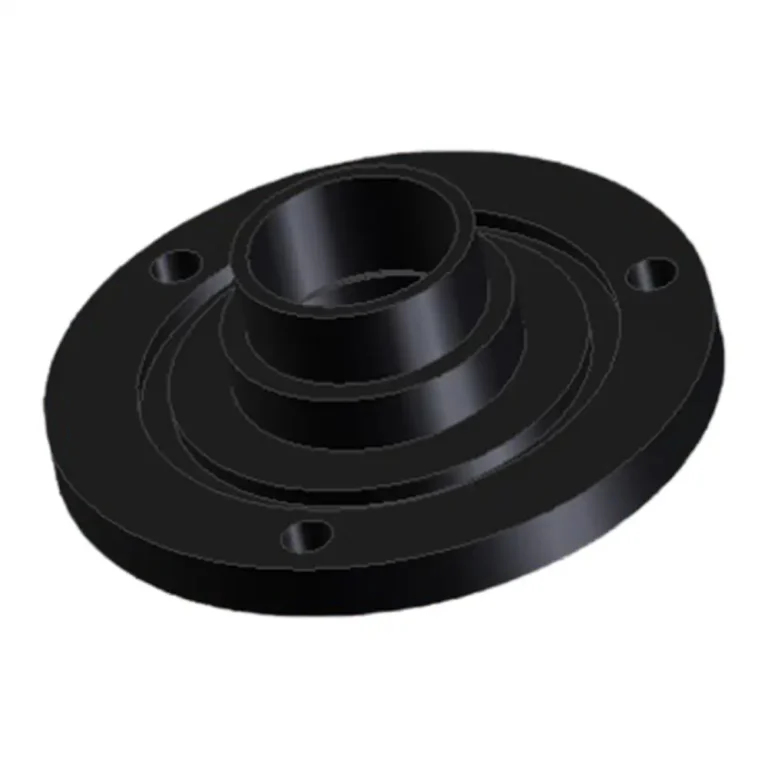

20mm METAL MOULD INSERT

Part No: XA-0017

20 mm machined steel insert designed to be bolted to metal moulds. This versatile insert accepts pipe inserts to connect to either a vacuum catch-pot, vacuum vent or an injection port.

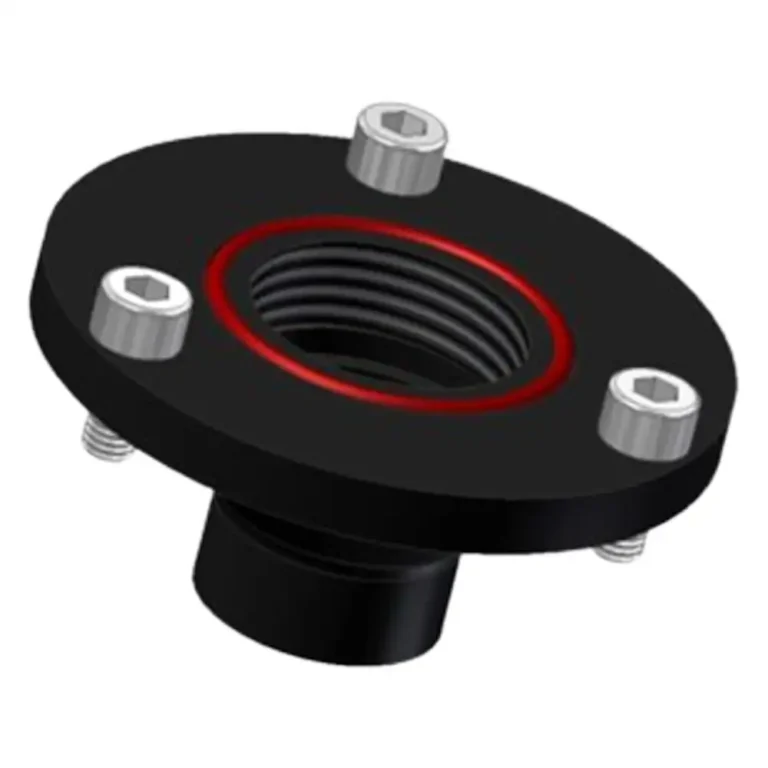

INJECTION VALVE METAL MOULD INSERT

Part No: XA-1519

Machined steel threaded insert designed to be bolted into metal moulds. This versatile insert accepts threaded pipe inserts to connect to either Injection Valves or injection/vacuum vents.

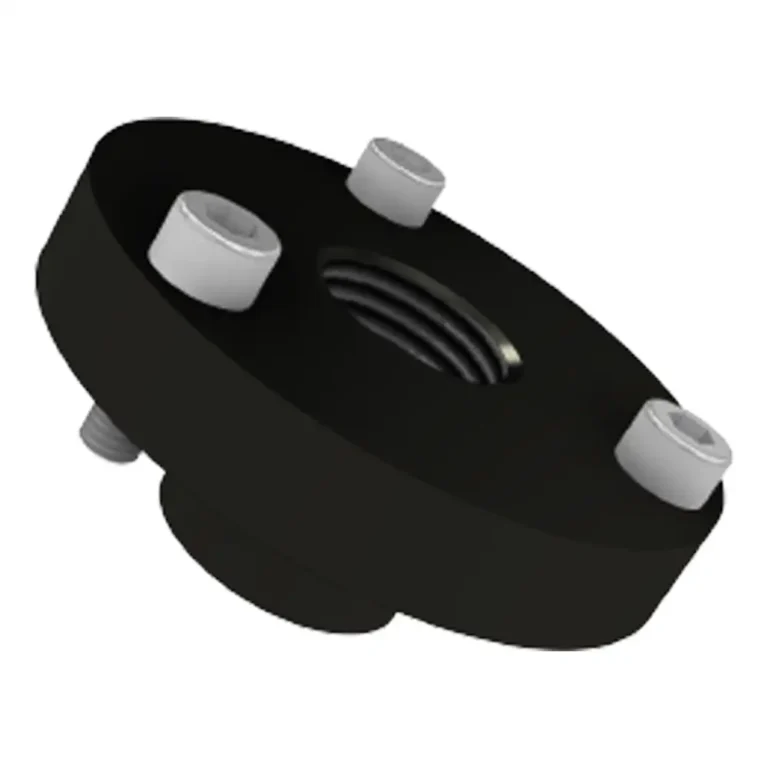

AIR EJECTOR METAL MOULD INSERT

Part No: XA-2006

20 mm machined steel insert designed to be bolted into metal moulds. This insert is used to connect an air ejector to a metal mould.

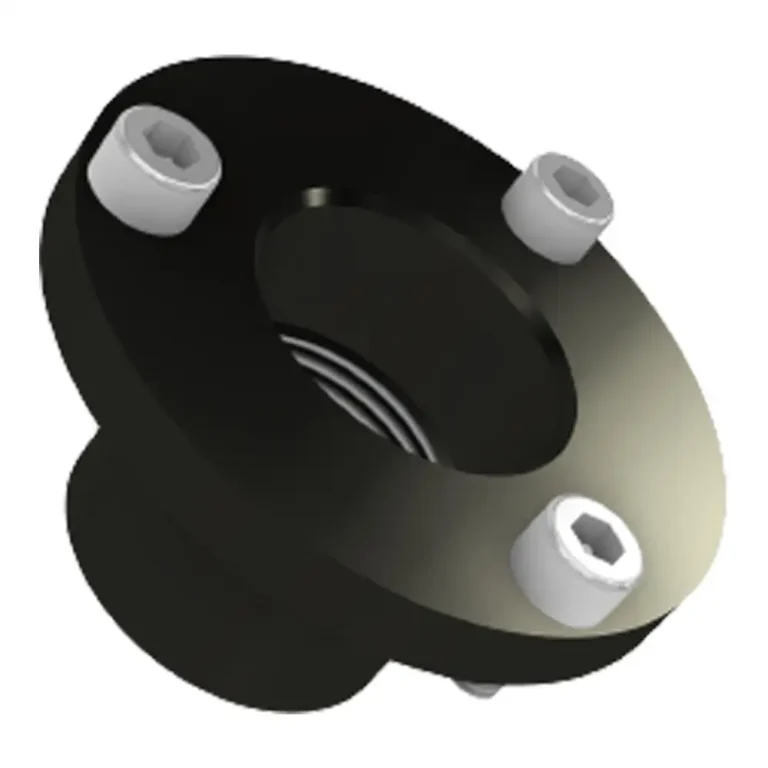

IMPS METAL MOULD INSERT

Part No: XA-0034

3/4” BSP machined steel threaded insert designed to be bolted into metal moulds. This insert is used to connect an in-mould pressure sensor to a metal mould.

GREEN D SECTION MOULD SEAL

Part No: RD-20-0011

‘D’ section mould seal which is a harder and more resilient version of the standard D mould seal. For use in high pressure RTM applications.

10 x 5 D SECTION MOULD SEAL

Part No: RD-20-0009

10 x 5 D section mould seal with radius used with small RTM applications where standard D mould seals would not be applicable.

BIRDHOUSE MOULD SEAL

Part No: RD-20-0038

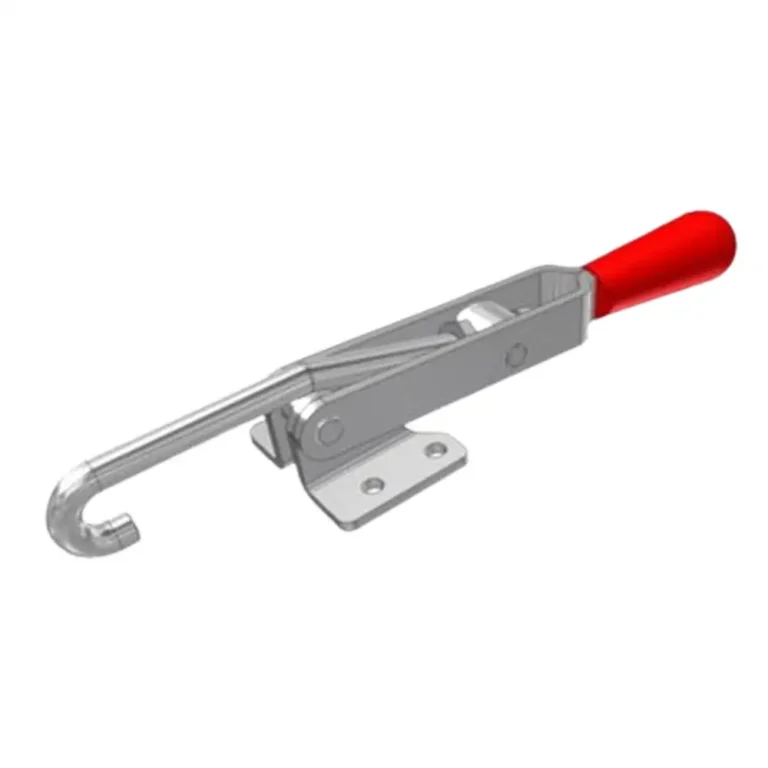

LATCH CLAMP 2200N

Part No: RD-35-0001

A medium duty latch clamp suitable to be used for VRTM tool manufacture. Complete with bracket to suit 2200N clamp.

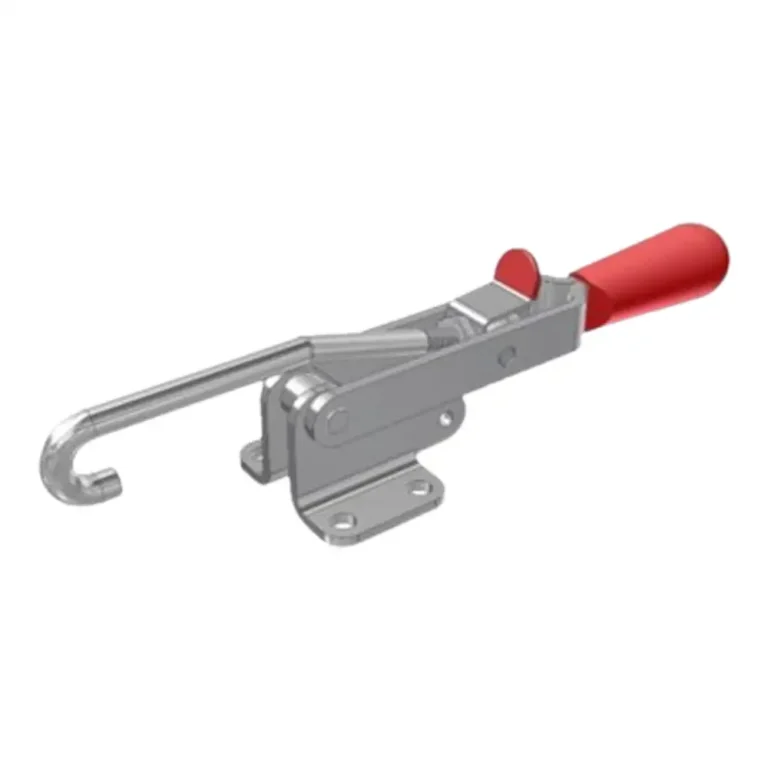

LATCH CLAMP 3400N

Part No: RD-35-0003

A heavy duty latch clamp suitable to be used for VRTM tool manufacture. Complete with bracket to suit 3400N clamp.
