Composite Tooling Accessories

INJECTION VALVE

Part No: XE-0015-01
A robust injection valve for CIJECT equipment, providing vacuum-tight connection to closed moulds. Enables easy cavity isolation, supports automation with minimal operator input, quick cleaning and reliable use with all resin types.
20mm Catch-Pot Assembly 1xGEKA

VACUUM CATCH POT

Part No: XE-0211
2 litre stainless steel vacuum catch-pot with clear acrylic lid, EPDM vacuum seal, and 3/8″ BSP port for optional vacuum connectors.
Resin Trap Assembly 1xGEKA

INLINE RESIN TRAP

Part No: XE-0213
2 litre stainless steel inline resin trap with clear acrylic lid, EPDM vacuum seal, and 3/8″ BSP port for optional vacuum connectors.

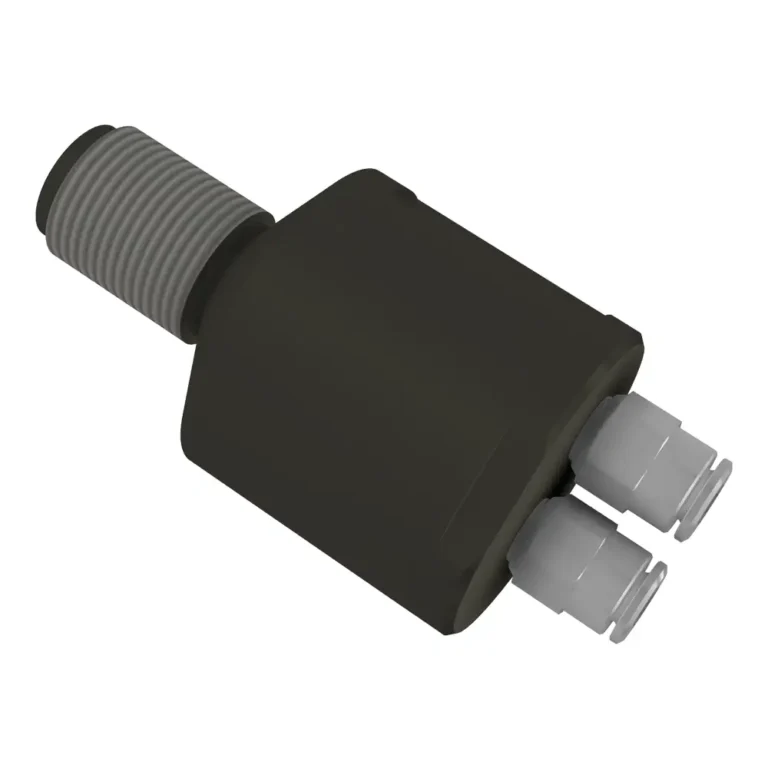

AIR EJECTOR (Use for all versions)

AIR EJECTOR

Part No: XE-0020
Designed to efficiently remove cured mouldings without the mould damage associated with wedges or mechanical force. Used for connection between CIJECT equipment and an inlet port of a typical closed mould.

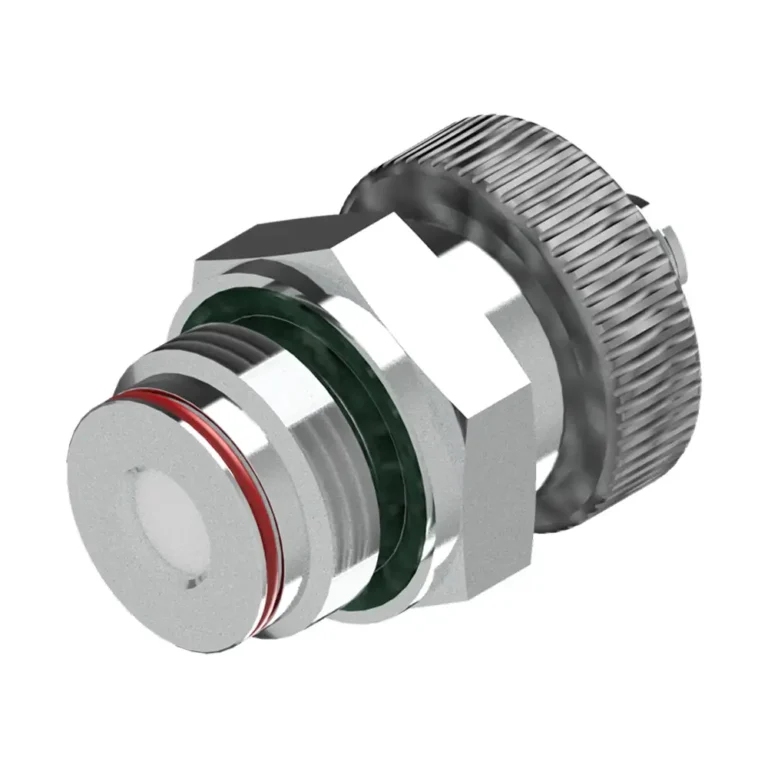

IMPS SENSOR 0-10 BAR ABSOLUTE

IMPS SENSOR 0 to 10 BAR (ABS)

Part No: XE-0050-011
0 to 10 bar (ABS) in-mould pressure sensor suitable for RTM process, providing in-mould feedback control to CIJECT injection/infusion machines.

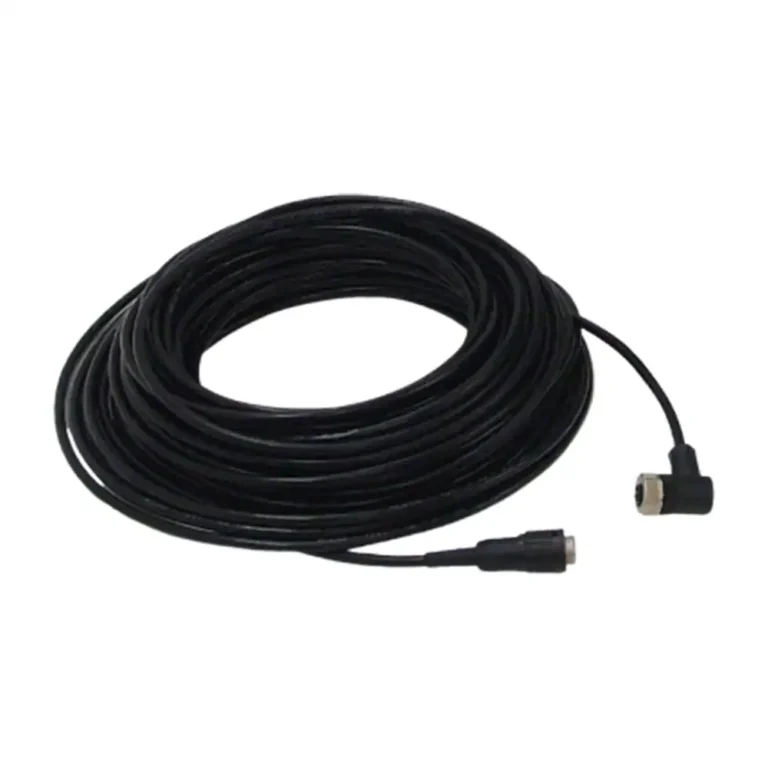

IMPS LEAD ASSEMBLY (3/10/25M)

IMPS LEAD ASSEMBLY (M12 CONNECTOR)

Part No: XE-0060-08 / XE-0060 / XE-0060-01
Sensor cable used to connect a sensor with a M12 connector to a CIJECT machine IMPS input or an IMPS Readout Unit. Connectors include 3–pin IMPS plug to 4–pin M12 socket.

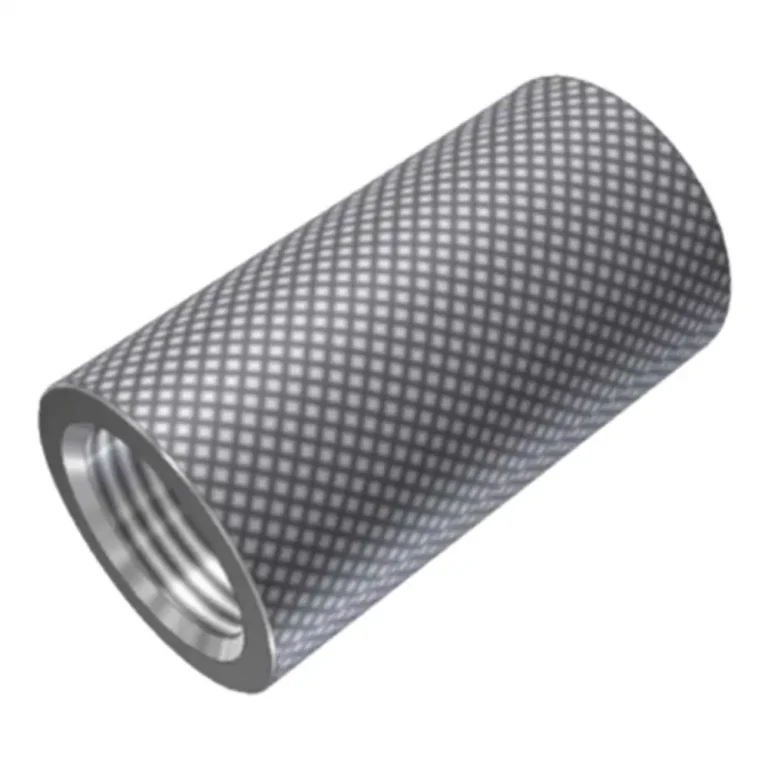

MOULD INSERT COMPOSITE-TOOLING

3/8″ BSP MOULD INSERT

Part No: XA-0002
3/8” BSP machined steel insert designed to be laminated into composite moulds. To be used for a flange vacuum connection or in conjunction with a vacuum vent liner to accept 6 mm pipe.

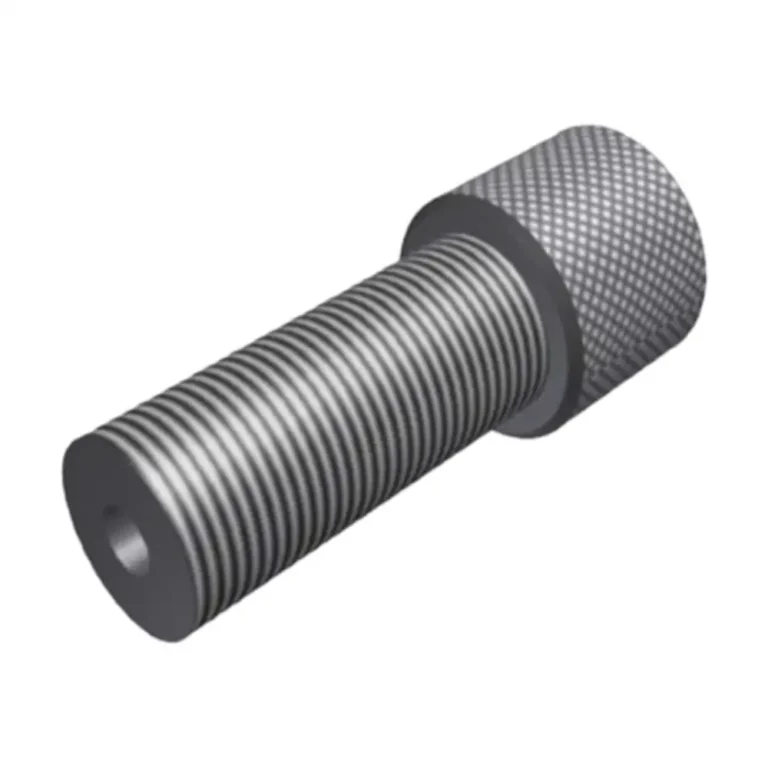

MOULD VENT LINER-INSERT

MOULD VENT LINER INSERT

Part No: XA-0003
Liner used in conjunction with a 3/8” BSP insert to reduce the vacuum vent diameter, for connecting 6 mm pipe.

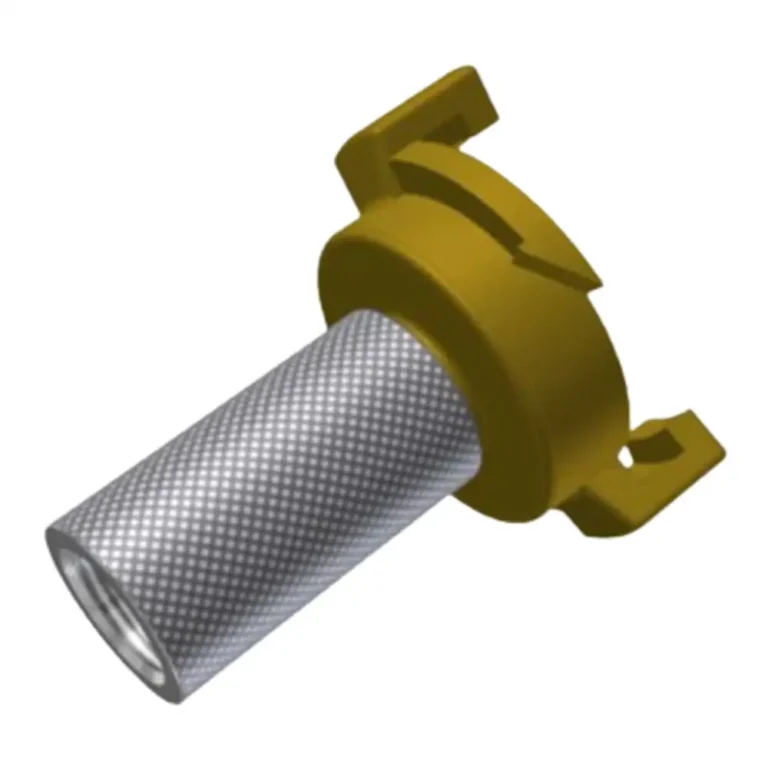

FLANGE MOULD INSERT WITH GEKA COMPOSITE TOOLING

VACUUM FLANGE FITTING WITH GEKA

Part No: XA-0304
Insert for a flange vacuum connection, to be laminated into composite moulds. Designed to accept other vacuum GEKA connections.

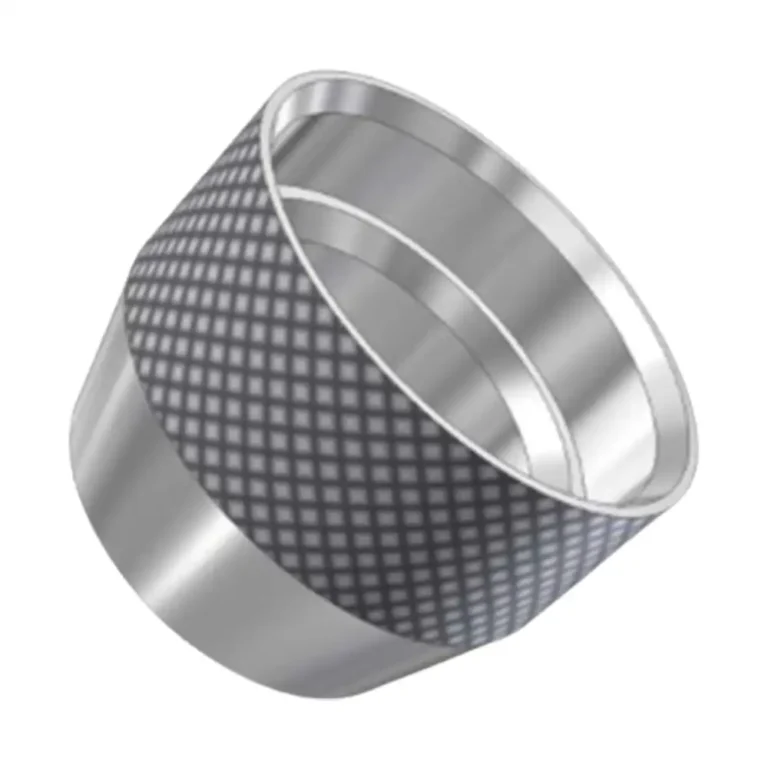

MOULD INSERT COMPOSITE TOOLING 20mm

MOULD INSERT 20mm

Part No: XA-0014
20 mm machined steel insert designed to be laminated into composite moulds. This versatile insert accepts pipe inserts to connect either a vacuum catch-pot, vacuum vent or an injection port.

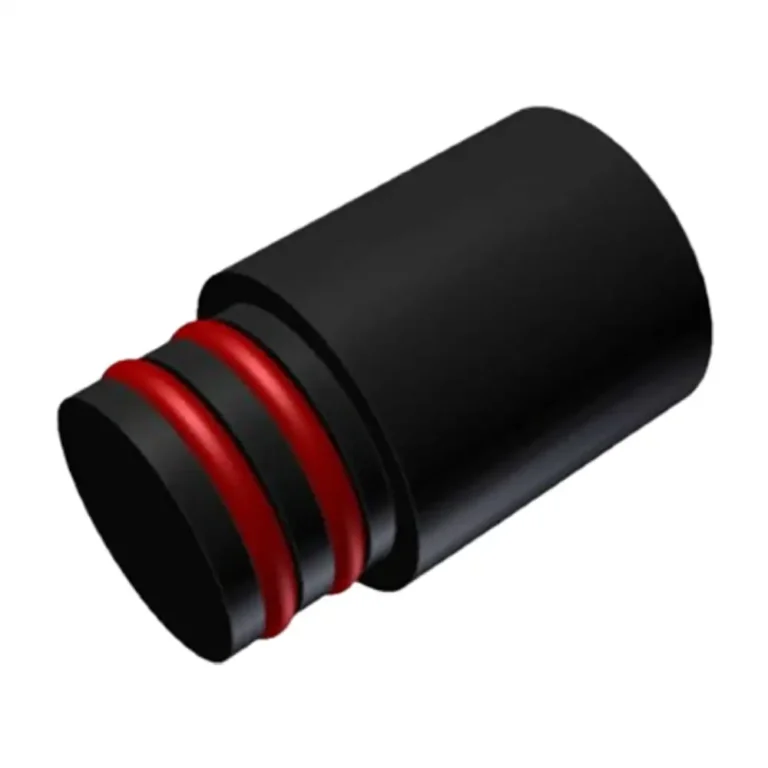

BLANK MOULD INSERT 20mm

BLANKING PLUG 20mm

Part No: XA-0005
3/8” BSP delrin blanking plug designed to be used with a mould insert to close off a vacuum catch-pot or injection port, when not in use.

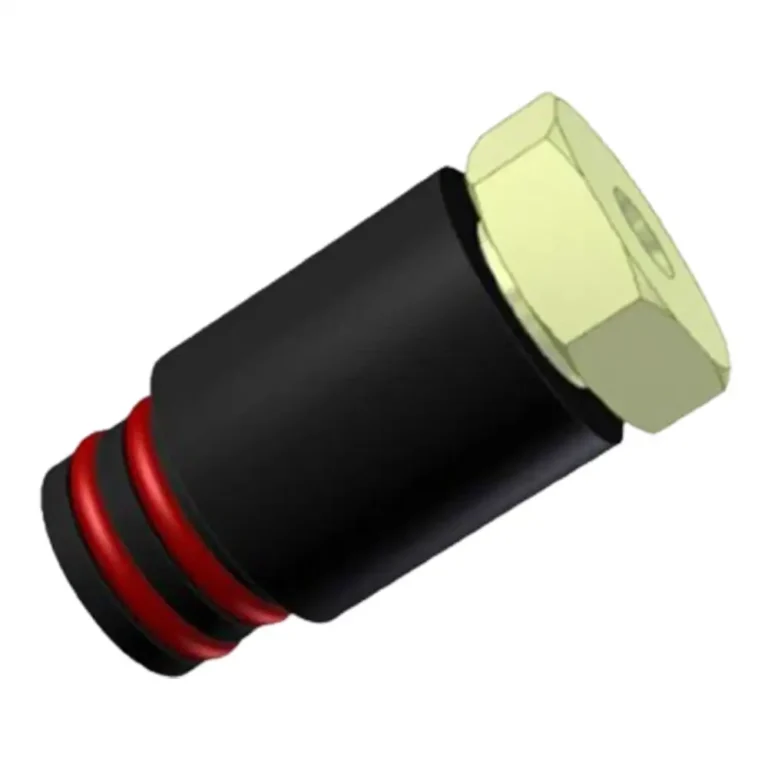

6mm PIPE INSERT (NUT TYPE) COMPOSITE TOOLING

6mm PIPE INSERT (NUT TYPE)

Part No: XA-0311
3/8” BSP delrin insert with 6 mm through-hole fitting and two silicone O-rings. Designed to be used with a mould insert to connect a 6 mm Injection or vent port to a mould.

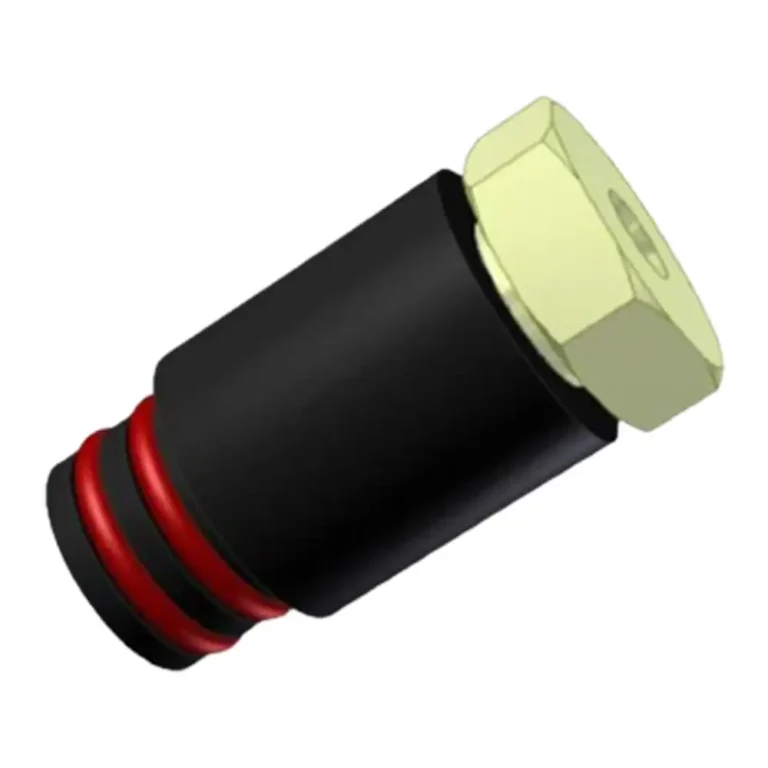

10mm PIP NUT INSERT (NUT TYPE) COMPOSITE TOOLING

10mm PIPE INSERT (NUT TYPE)

Part No: XA-0312
3/8” BSP delrin insert with 10 mm through-hole fitting and two silicone O-rings. Designed to be used with a mould insert to connect a 10 mm injection or vent port to a mould.

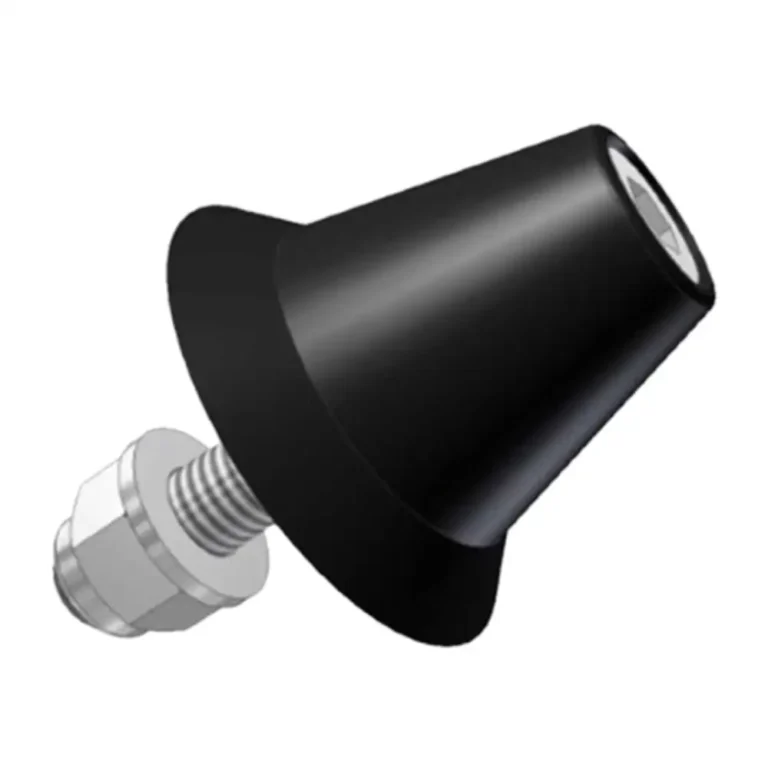

MOULD LOCATION CONE COMPOSITE TOOLING

MOULD LOCATION CONE

Part No: XA-0020
Machined delrin mould location cone designed to be bolted to the flange of an ‘A’ surface mould, between inner/outer mould seals. The cone gives positive X-Y-Z locations between the upper/lower mould surfaces.

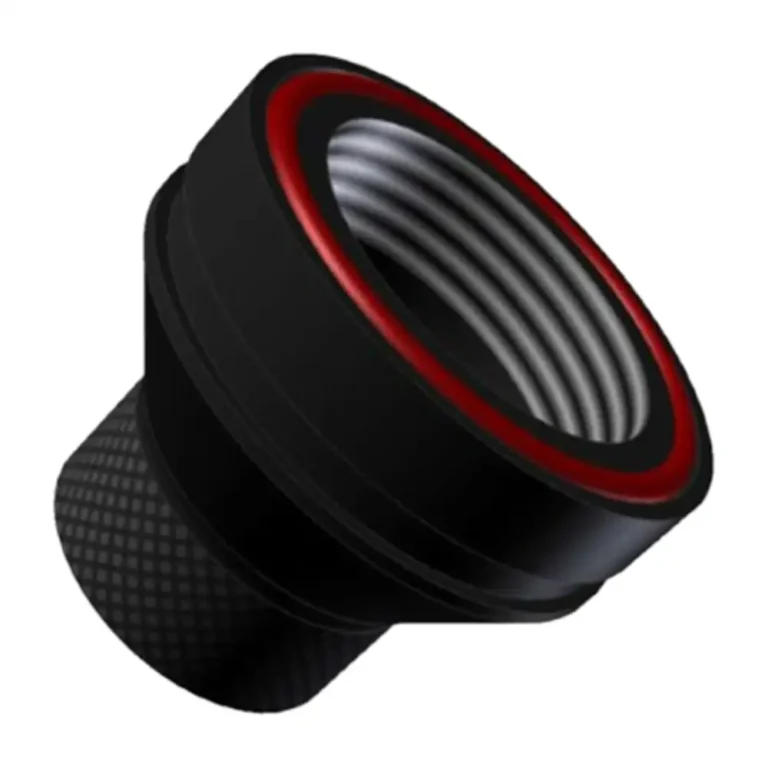

INJECTION VALVE MOULD INSERT COMPOSITE TOOLING

INJECTION VALVE MOULD INSERT

Part No: XA-1501
Machined steel threaded insert designed to be laminated into composite moulds. This versatile insert accepts threaded pipe inserts to connect to either injection valves or injection/vacuum vents.

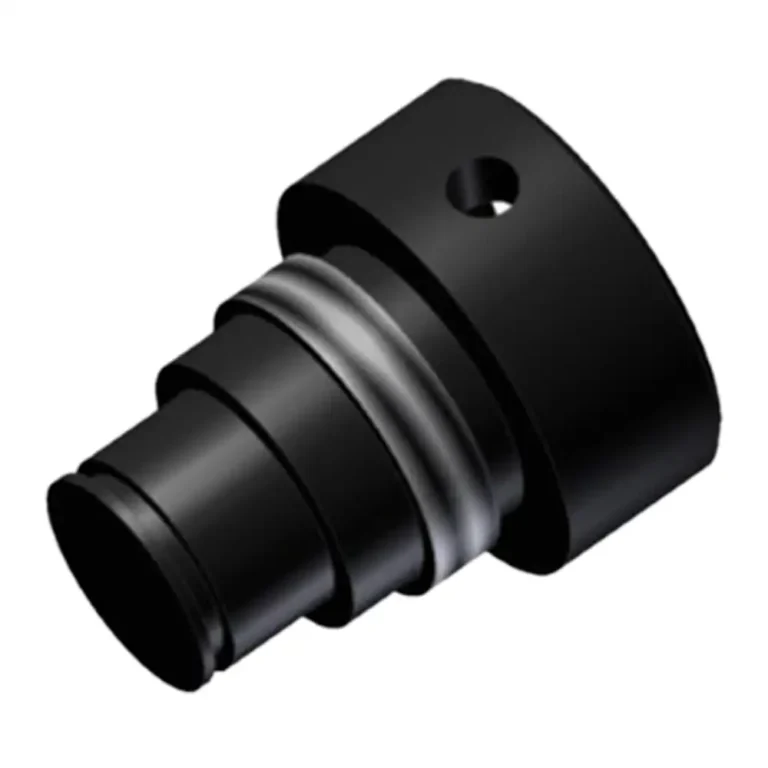

INJECTION VALVE BLANKING PLUG

INJECTION VALVE BLANKING PLUG

Part No: XA-1518
3/8” BSP delrin blanking plug designed to be used with a composite mould insert to close off a vacuum catch-pot or injection port, when not in use.

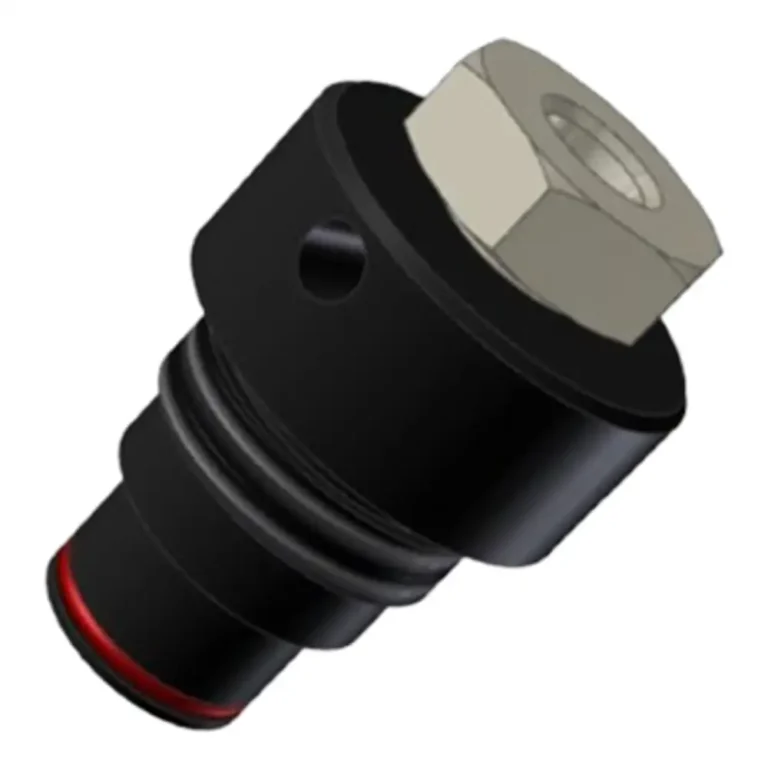

INJECTION VALVE MOULD INSERT 10mm PIPE (NUT TYPE)

INJECTION VALVE 10mm PIPE MOULD INSERT (NUT TYPE)

Part No: XA-0315
3/8” BSP delrin insert with 10 mm through hole fitting and two silicone O-rings. Designed to be used with a mould insert to connect a 10 mm injection or vent pipe to a closed mould.

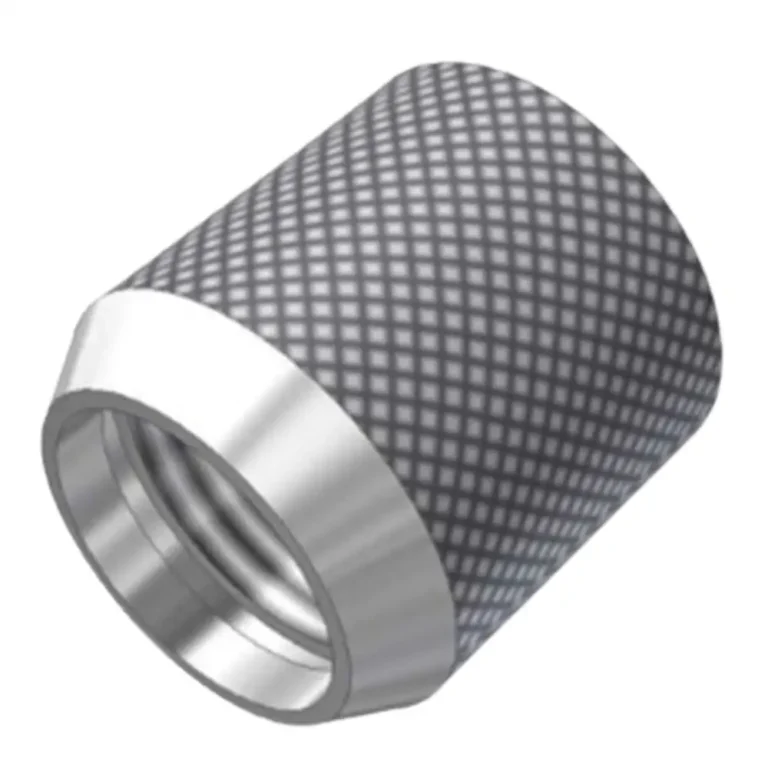

AIR EJECTOR MOUD INSERT COMPOSITE TOOLING

AIR EJECTOR MOULD INSERT

Part No: XA-2001
20mm machined steel threaded insert designed to be laminated into composite moulds. Used to connect an air ejector to a composite mould.

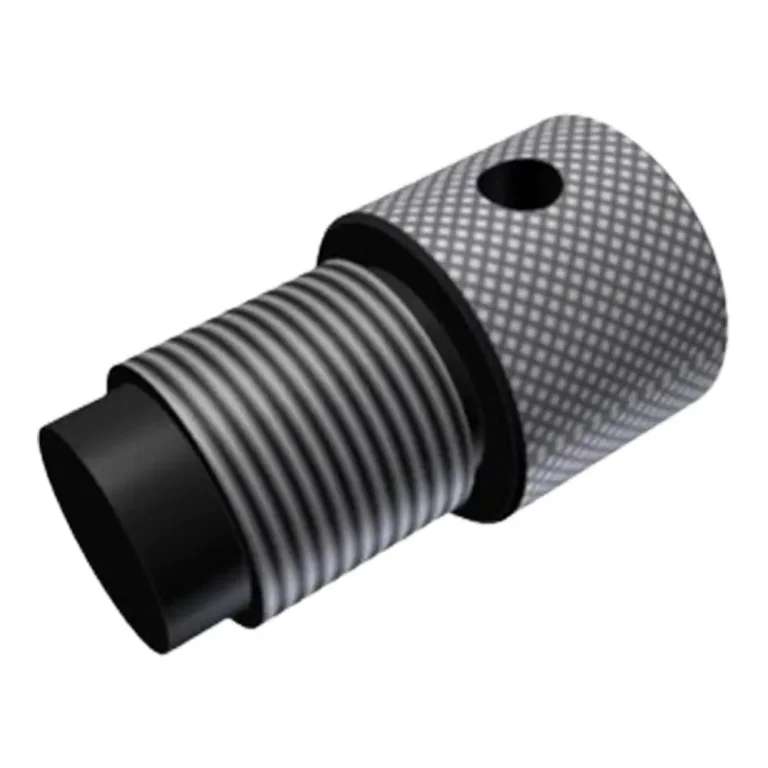

AIR EJECTOR BLANKING PLUG

AIR EJECTOR BLANKING PLUG INSERT

Part No: XA-2007
20mm machined delrin insert with no through hole. Used with either a composite or metal mould insert, to close off an air ejector when not in use.

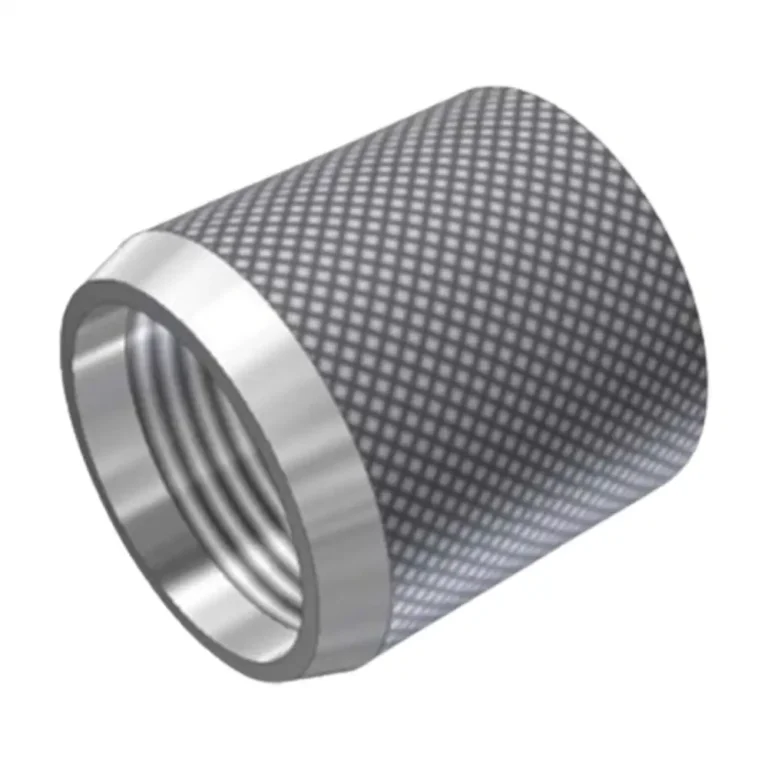

IMPS MOULD INSERT COMPOSITE TOOLING

IMPS MOULD INSERT

Part No: XA-0030
3/4” BSP machined steel threaded insert designed to be laminated into composite moulds. This insert is used to connect an IMPS sensor to a composite mould.
