Composite Tooling Accessories

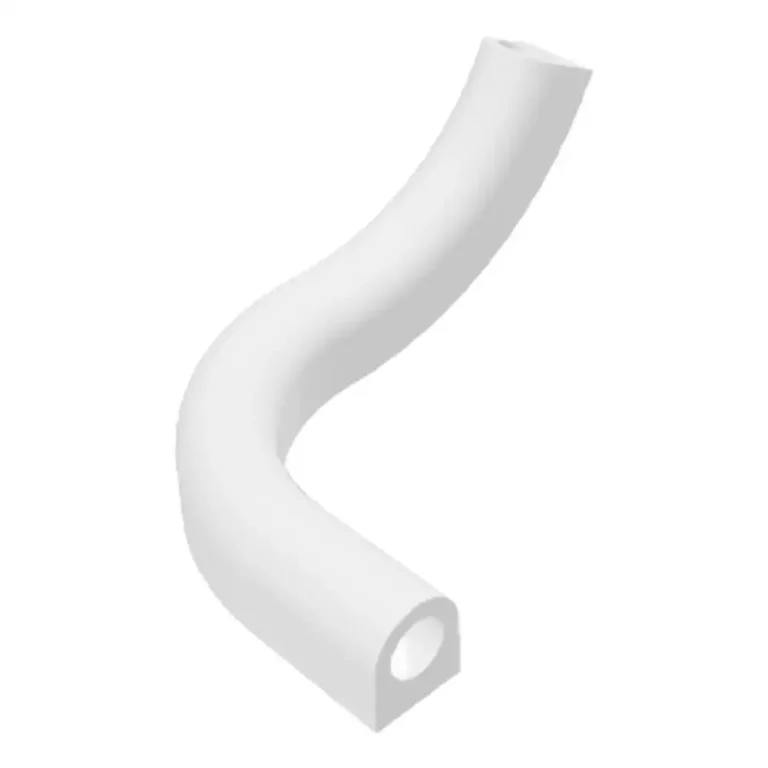

‘D’ section mould seal for use as a primary resin seal in the majority of ‘Light’ RTM and RTM tooling.

D section mould seal used as a resin seal in ‘Light’ RTM or RTM tooling. This can be inflated or collapsed under vacuum using a seal control unit.

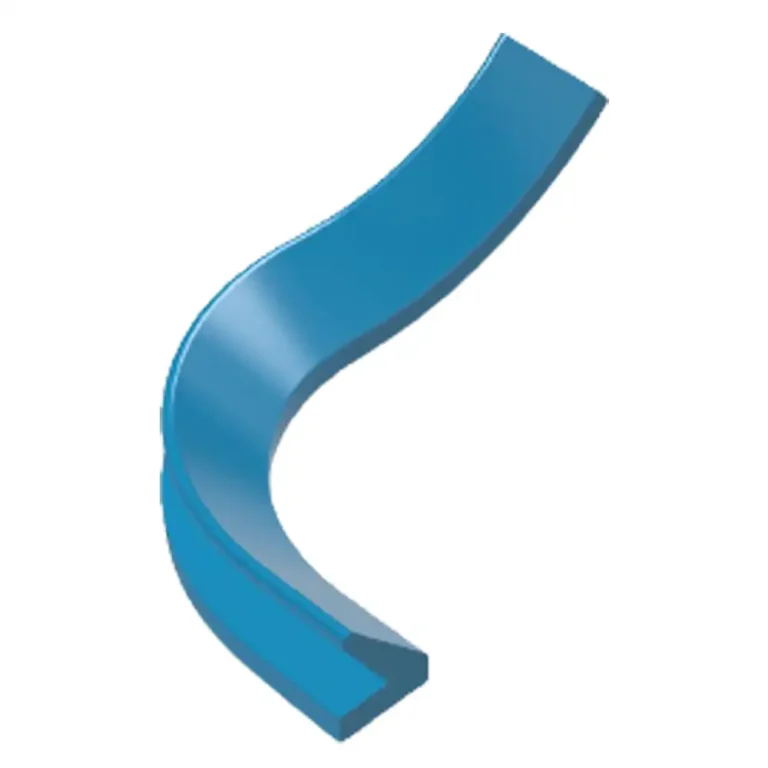

‘Lip’ section mould seal for use as an outer vacuum seal in ‘Light’ RTM moulds.

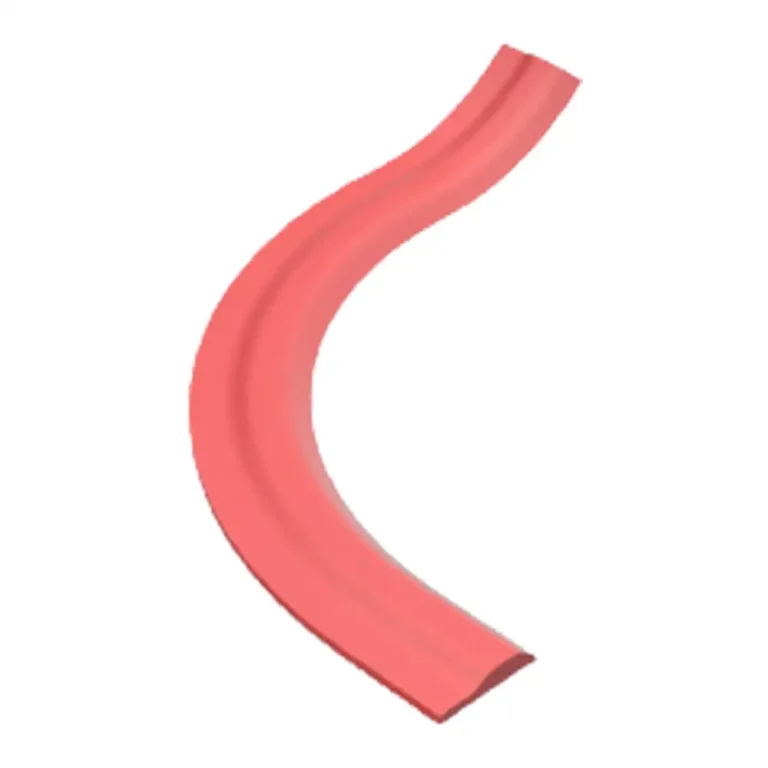

Resin runner mould seal that provides correct resin runner detail in VRTM tooling. This can also be formed around horizontal and vertical radii.

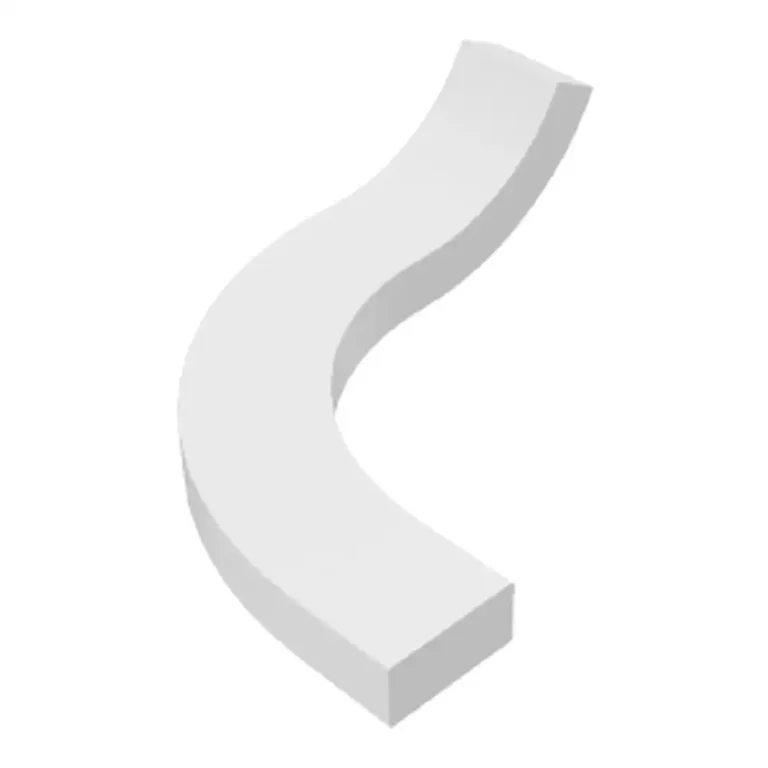

Foam section mould seal that provides correct groove detail for fitting ‘Lip’ section mould seal. This can be formed around horizontal and vertical radii.

A range of self-adhesive accurately calibrated sheet wax in a variety of thicknesses (0.25 – 5 mm) used in the process of building composite tooling.

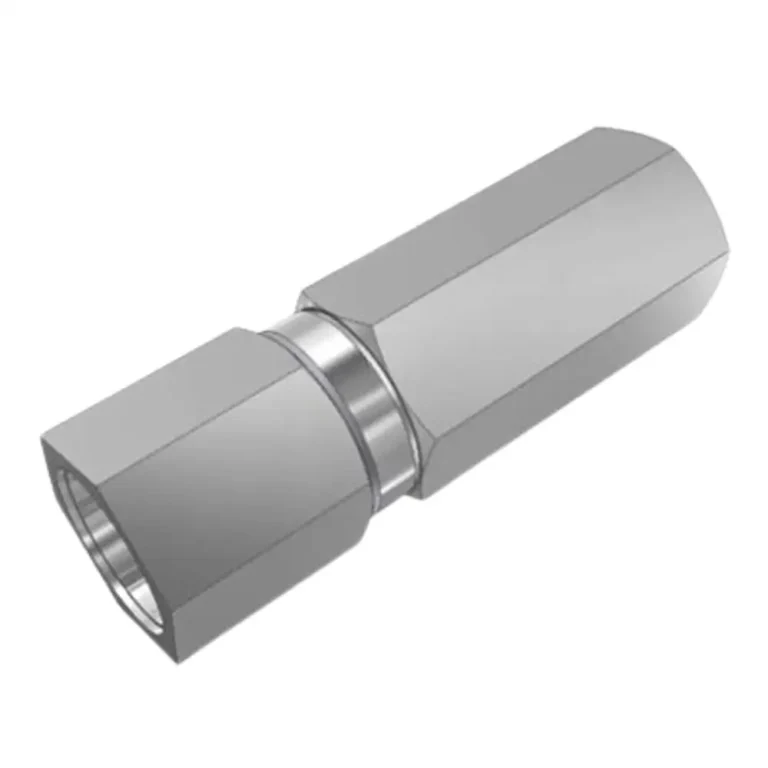

Heavy duty machined steel clamp dowel location set for RTM tooling, featuring a shimmed male cone allowing ‘Z’ stop adjustment. Designed to be welded directly to a mould tool frame structure.

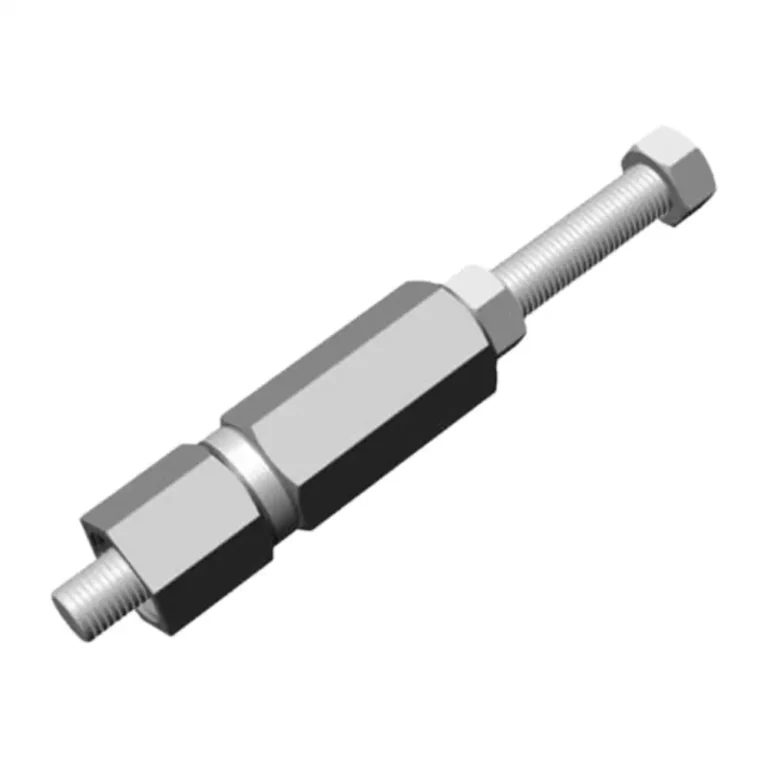

Heavy duty machined clamp dowel location set for RTM tooling, featuring a shimmed male cone as well as an M24 bolt allowing ‘Z’ stop adjustment. Designed to be welded directly to a mould tool frame structure.

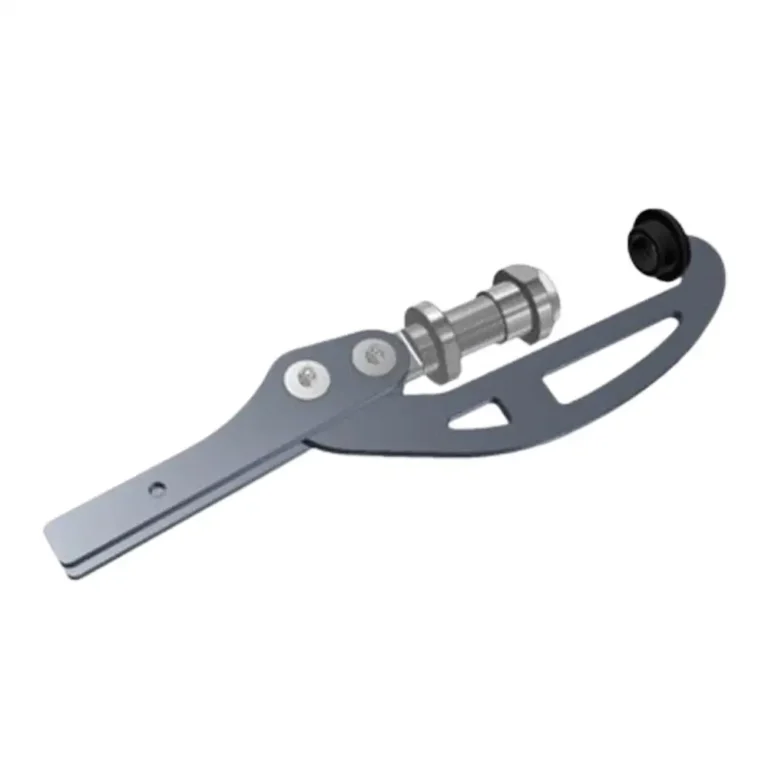

Fast action, heavy duty toggle clamp system. Designed to fit mould tool clamp complete set.

Complete assembly including the dowel, mould clamp and toggle clamp. Designed for use with RTM tool manufacture.
